Aquarium Airline Check Valve Protocol: Where It Helps and Where It Does Not

An aquarium airline check valve is a small part with a narrow job: reduce the chance that tank water siphons backward through an airline toward an air pump. It is not a complete outage plan, a water-quality fix, or a guarantee against every leak. Used correctly, it is cheap insurance for sponge filters, air stones, and breeder boxes powered by pumps below the water line.

This protocol is for ordinary home aquariums that use standard airline tubing. If your main concern is oxygen during storms, also read our aquarium air pump backup protocol because a valve and a backup pump solve different problems.

Quick setup

A safer airline layout uses four checks:

• Keep the air pump above the water line when possible.
• Add a check valve when the pump sits below the tank or inside a cabinet.
• Install the valve in the correct direction and where you can inspect it.
• Test airflow and replace stiff, cloudy, or clogged tubing.

Search Amazon for aquarium airline check valves if your pump is below the tank. Search Amazon for airline tubing kits if the existing tubing is brittle or too short for a clean route.

Why back-siphon happens

Water moves downhill when a siphon path exists. If an air pump stops and the airline outlet is submerged, water can begin moving backward through the tubing, especially when the pump is lower than the aquarium. The result can be water inside the pump, a wet stand, or water near an electrical outlet. Aquarium electrical-safety guidance consistently starts with preventing water from reaching powered equipment; Fishkeeping.co.uk’s tank safety guide highlights drip loops, dry equipment placement, and avoiding water paths toward plugs (Fishkeeping.co.uk aquarium electrical safety).

A valve is a one-way door. It lets air move toward the tank and resists water moving backward. The catch is that small valves can fail, clog, or be installed backward. Treat the valve as a layer, not a license to ignore pump placement.

Step 1: map the airline route

Turn off the pump, dry your hands, and trace the tubing from pump to tank. Note whether the pump is below the water surface. A pump sitting in a cabinet under the aquarium is the classic back-siphon case. Also check whether the line dips below the pump and then rises again; low loops can collect water and make troubleshooting harder.

If you can safely place the pump above the aquarium, do that first. A high pump reduces siphon risk even before adding hardware. Use a stable shelf, avoid wet splash zones, and keep cords with drip loops.

Step 2: choose a simple valve with visible direction

For standard aquarium air lines, most hobby valves fit 3/16-inch tubing. Pick a valve with a clear arrow or an obvious flow direction. Avoid mystery packs with no direction marking if you are not comfortable testing them. A valve that is hard to inspect is more likely to stay backward or clogged for months.

Before installing, blow gently through the valve from both directions. Air should pass easily in one direction and be blocked or strongly resisted in the other. If air barely passes either way, choose another valve.

Step 3: install it close enough to inspect

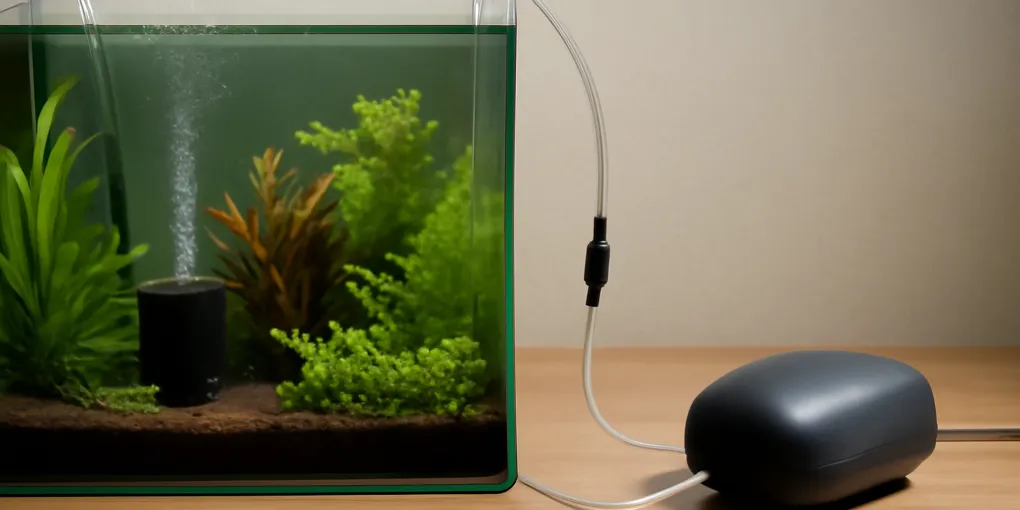

Cut the airline cleanly and insert the valve so the arrow points from the pump toward the aquarium. Put it outside the tank, not underwater, and leave enough slack to remove it later. Many keepers place the valve several inches from the pump or along the visible tubing run. The exact location matters less than correct direction, dry placement, and access.

Restart the pump and watch bubbles for several minutes. If the sponge filter or air stone is suddenly weak, the valve may be backward, too restrictive, or paired with an underpowered pump.

Step 4: do a controlled stop test

After installation, unplug the pump while watching the line. Do not leave the room during this first test. Look for water climbing the tubing, loose connections, and drips. Plug the pump back in and confirm normal bubbles return.

A stop test does not prove the valve will work forever. It confirms the first installation is not obviously wrong.

Step 5: keep maintenance simple

Check valves live in a humid, mineral-rich environment. Over time, salt creep, hard-water deposits, biofilm, or dust can make them sticky. Inspect the valve during regular water changes. Replace it if it becomes cloudy, stiff, noisy, cracked, or restrictive.

Also replace old airline tubing. Brittle tubing can pop off fittings, and cloudy tubing makes it harder to see water movement. If tubing repeatedly slips, cut a fresh end or replace the run instead of forcing it back on.

What a check valve does not solve

A check valve does not keep fish safe during an extended outage. Fish still need oxygen, stable temperature, and acceptable ammonia and nitrite levels. University of Florida Extension’s aquarium water-quality guidance emphasizes dissolved oxygen, ammonia, nitrite, pH, and temperature as linked parts of fish health, so a valve cannot replace testing and outage planning (UF/IFAS aquarium water quality). For storm planning, a battery air pump, spare batteries, water testing, and heat strategy matter more than the valve alone.

It also does not protect a tank from a cracked hose, loose connector, failed canister-filter seal, or water-change spill. Keep electrical outlets protected, use drip loops, and do not place power strips where water can run directly into them. Missouri Extension’s home-aquarium guidance also treats water quality, equipment, and routine maintenance as connected responsibilities rather than single-part fixes (University of Missouri Extension: home aquariums).

Aquarium airline check valve FAQ

Should the valve go before or after a gang valve?

If one pump feeds several air lines, each submerged line can need its own protection depending on the layout. A single valve before a gang valve may not protect every branch equally. Keep the setup easy to inspect and test each branch after installation.

Can a check valve reduce airflow?

Yes. Any restriction can reduce airflow, especially with a weak pump, deep tank, clogged air stone, or long tubing run. If bubbles drop sharply after installation, test direction first, then test the pump without the valve.

How often should I replace it?

Replace it when airflow drops, the valve sticks, the plastic cracks, or you cannot confirm one-way function. Many hobbyists treat check valves as inexpensive maintenance parts rather than lifetime hardware.

Bottom line

Use an aquarium airline check valve when the pump is below the water line or when back-siphon would put water near the pump or outlet. Install it in the correct direction, test it, keep it visible, and remember that it solves only the siphon part of aquarium safety.
